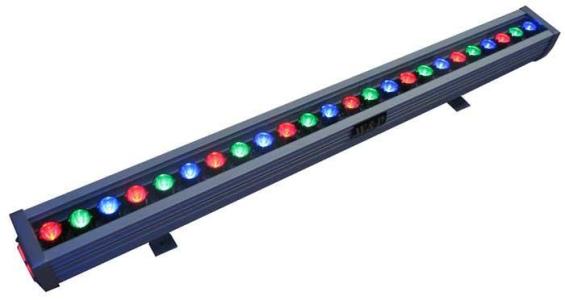

Performance introduction of high power LED wall washing lamp
1. Power:
The detailed power parameters of high-power LED wall washing lamp include 6W, 9W, 10W, 12W, 14.4w, 18W, 24W, 36W and other parameters.
Divided by lamp beads: 6 beads, 9 beads, 12 beads, 18 beads, 24 beads, 36 beads, 48 beads, 54 beads, 108 beads, etc. generally, high-power LED wall washing lamps refer to single row.
More than 48 beads are double or multiple rows. In addition, due to the problem of heat dissipation, it is best to use aluminum phase plate, and the shell adopts aluminum alloy shell, otherwise the poor heat dissipation will present a severe situation of light decay.
2. Voltage:
The input voltage of the wall washing lamp is DC DC24V. Generally, the built-in power supply is externally connected with AC220V, and the external power supply is generally low-voltage DC24V. The voltage varies according to different requirements and manufacturers. Such as 12V, 36V, 48V.
3. IP protection level:
The protection grade of high-power LED wall washing lamp can reach IP65. 6 means to completely avoid dust entry, and 5 means to wash with water without any damage.
4. Color standard:
Top of the list: colorful internal control
Second: full color external control (TTL and DMX512)
Third: monochrome external control and monochrome constant light
5. Color temperature:
The commonly used color temperatures of several monochromes are:
About 1800-2000k is golden light, 2300-2400k is orange, 2800-3000k is warm white light, 4000-4500k is neutral light, 6000-6500k is positive white light, and above 7000K is cold white light.
6. Luminous viewpoint:
The light source of high-power LED wall washing lamp adopts 3030, lumen like lamp beads, the farthest useful projection interval is 5m, and the luminous viewpoint is 45-120 degrees.
7. Mirror:
Glass reflective lens, with a light transmittance of 92%, is not easy to atomize and can resist UV radiation.
8. Lens:
The lens of high-power LED wall washing lamp is divided into 30 degrees, 60 degrees and 90 degrees. The less the viewpoint, the better the focusing effect.
9. Standard dimensions:
The scale of high-power LED wall washing lamp can be: 28 * 19 * 1000, 40 * 48 * 1000, 50 * 55 * 1000.
